ECG V200

Deskripsi Singkat Produk

ECG 12 Channel is an advanced electrocardiograph designed to deliver fast, accurate, and reliable cardiac monitoring. Equipped with a 12.1-inch touchscreen display, simultaneous 12-lead acquisition, high-speed sampling, and multiple data transfer options, it streamlines clinical workflows while ensuring precise diagnostic results. Its compact design, built-in thermal printer, and long-lasting battery make it an ideal solution for hospitals, clinics, and healthcare professionals.

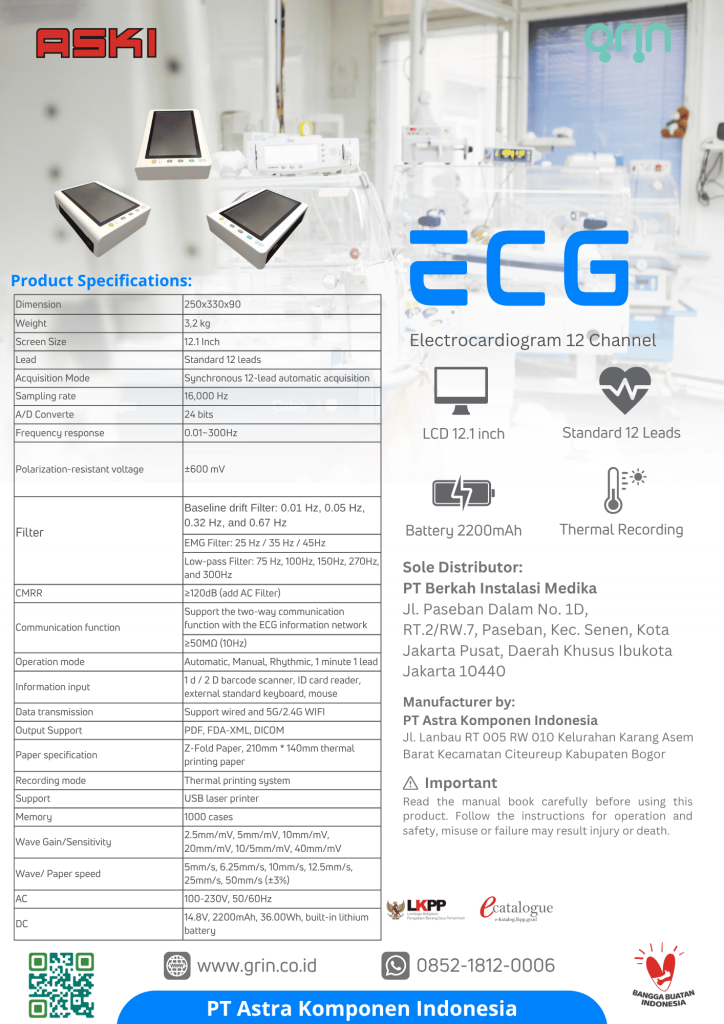

Spesifikasi Produk
  • Display: 12.1-inch LCD Touchscreen
  • ECG Leads: Standard 12-Lead Simultaneous Acquisition
  • Sampling Rate: 16,000 Hz
  • A/D Converter: 24-bit High-Resolution
  • Frequency Response: 0.01–300 Hz
  • CMRR: ≥120 dB (with AC Filter)
  • Operating Modes: Automatic, Manual, Rhythmic, and 1-Minute ECG
  • Connectivity: LAN, Wi-Fi (2.4G/5G), USB, Barcode Scanner, and ID Card Reader
  • Data Export Formats: PDF, FDA-XML, DICOM
  • Memory Capacity: Up to 1,000 Patient Records
  • Printing: Built-in Thermal Printer with USB Laser Printer Support
  • Paper Type: Z-Fold Thermal Paper (210 × 140 mm)
  • Battery: Built-in 14.8V 2200mAh Lithium Battery
  • Dimensions: 250 × 330 × 90 mm
  • Weight: 3.2 kg
