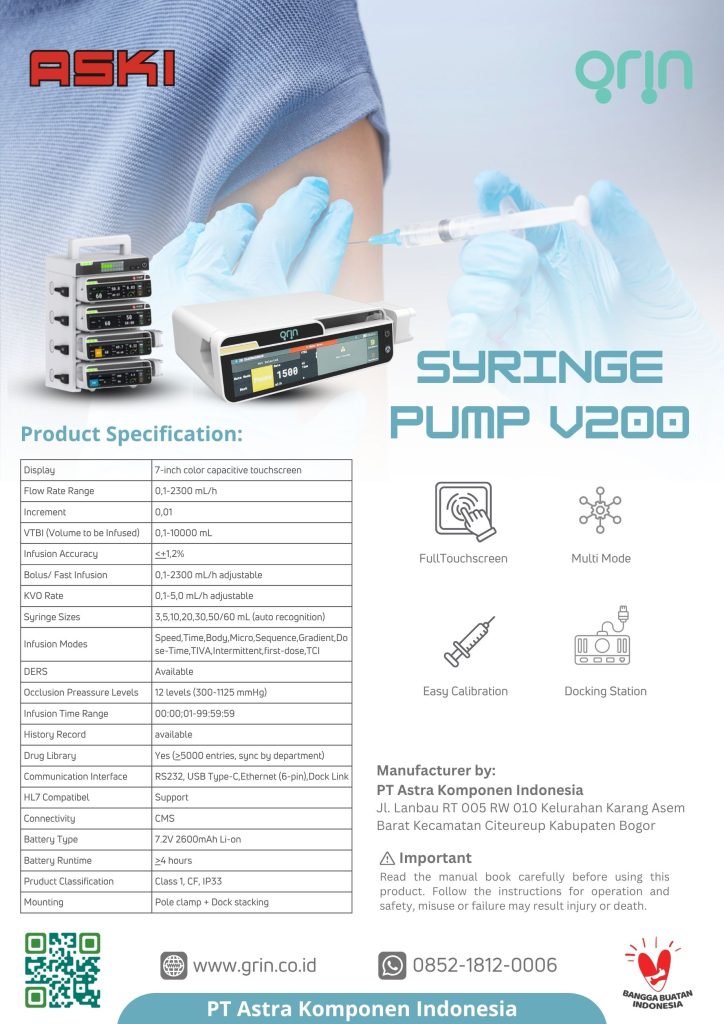

Syringe Pump V200

Deskripsi Singkat Produk

The Syringe Pump V200 is a high-precision medical device designed to deliver small volumes of fluids or medications accurately and consistently through a syringe. It features an easy-to-read digital display, adjustable infusion rates, and built-in safety systems such as alarms for occlusion and flow errors. With its compact, user-friendly design, the device is well-suited for use in various clinical settings, including ICU, NICU, and general patient care units.

Spesifikasi Produk

    • Display: 7-inch color capacitive touchscreen

    • Flow Rate Range: 0,1-2300 mL/h

    • Increment: 0,01

    • VTBI (Volume to be Infused): 0,1-10000 mL

    • Infusion Accuracy: <±1,2%

    • Bolus/ Fast Infusion: 0,1-2300 mL/h adjustable

    • KVO Rate: 0,1-5,0 mL/h adjustable

    • Syringe Sizes: 3,5,10,20,30,50/60 mL (auto recognition)

    • Infusion Modes: Speed,Time,Body,Micro,Sequence,Gradient,Dose-Time,TIVA,Intermittent,first-dose,TCI

    • DERS: Available

    • Occlusion Preassure Levels: 12 levels (300-1125 mmHg)

    • Infusion Time Range: 00:00:01-99:59:59

    • History Record: available

    • Drug Library: Yes (≥5000 entries, sync by department)

    • Communication Interface: RS232, USB Type-C, Ethernet (6-pin), Dock Link

    • HL7 Compatibel: Support

    • Connectivity: CMS

    • Battery Type: 7.2V 2600mAh Li-on

    • Battery Runtime: ≥4 hours

    • Product Classification: Class 1, CF, IP33

    • Mounting: Pole clamp + Dock stacking
